Image Analyzer

Retinal Pathology Progression Analyzer

Analyze retinal pathology to find the progression of a person with Diabetic Retinopathy, Age-related Macular Degeneration (AMD), and other eye diseases.

RePPA Functionalities

The Loading of the Image The Calibration of the Image Vessel or Optic Disk Analyzation Drusen Analyzation Two Image Registrations in Two Different Times

How RePPA tool works

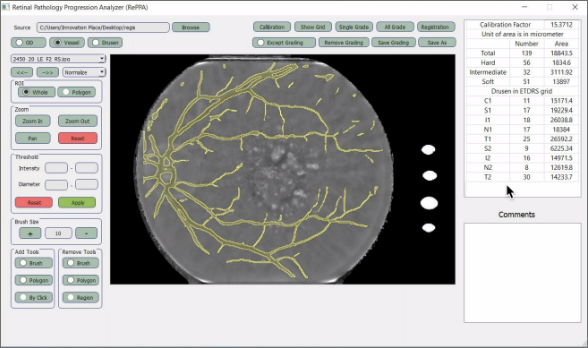

The calibration factor has to be taken into account before or after the images are taken. If the calibration factor is not taken into account before, one must compute the calibration factor after utilizing the “Calibration” button. You can either a single image After grading, you can see the results of the auto-grading process Using multiple moods of RePPA, you can see drusen, vessel or optic disc, To see the changes in two different images, you can register two images that have been taken at two different times

Retinal image analyzing in the vassel or optic disc mood

Retinal Image
Retinal Image

Retinal Vessel Analyzer (REVA)

Automatically analyzes retinal blood vessels to find the individual’s risk for systemic diseases.

ReVA Functionalities

Image Loading Image Calibration Optic Disc(OD) Detector Blood Vessel Detection Vessel Width Measurement Image Grading CRAE Á CRVE Computation
Retinal Image

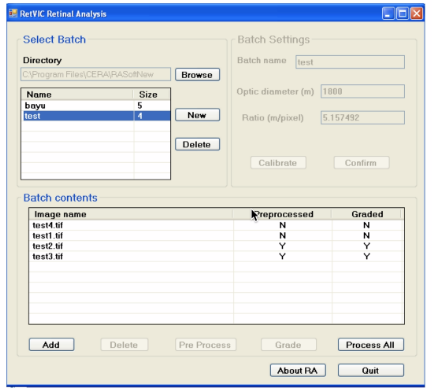

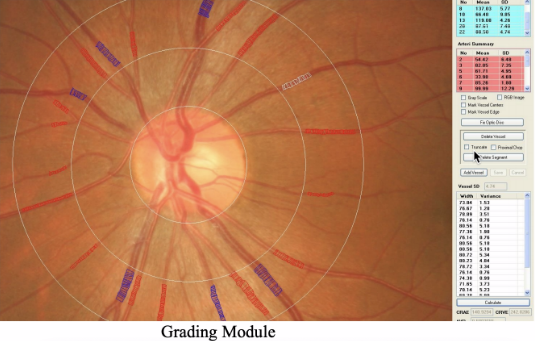

Image Grading

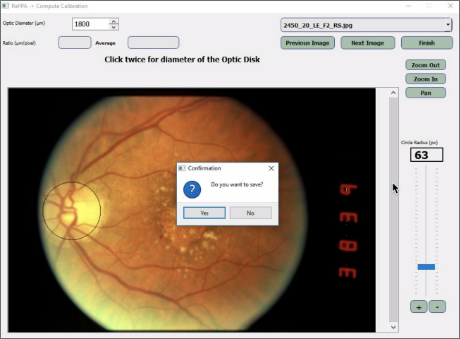

To measure the calibration factor of a camera which represents the pixel distance; draw the circle and divide 1850 by its radius

Retinal Image

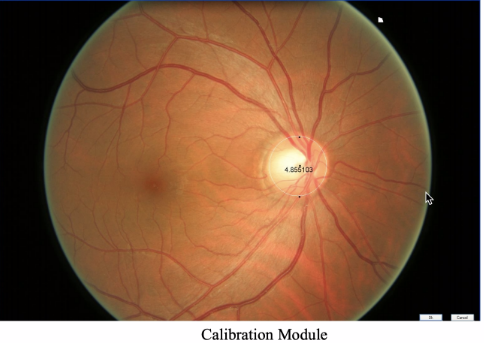

Image Calibration

Grader identifies a vessel such as an artery or vein. The software will detect vessels semi-automatically. This can be done by selecting by left-click and defining artery/vein with a rightclick. The grader can correct any part of the width measurement if necessary.

Retinal Image

Optical Coherence Tomography (OCT)

An Optical Coherence Tomography (OCT) inspector is used to find and monitor retinal diseases through an automated segmentation method of the retinal layer in 2D and 3D.

Automated method of retinal layer segmentation from Spectral Domain Optical Coherence Tomography (SD-OCT) images in 3D.

Retinal Image

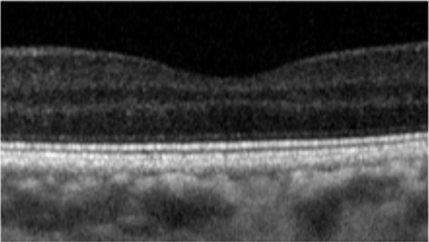

Original: OCT B scan image

3D segmentation utilizes more information than 2D segmentation. This leads to a more accurate and reliable segmentation than 2D segmentation.

Retinal Image

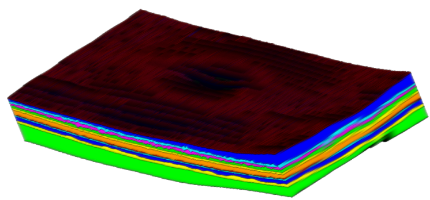

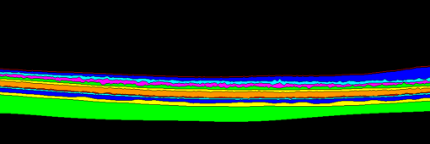

Segmentations of 2D and 3D

The results show outstanding accuracy and an improvement in the state-of-the-art. This indicates that the tool can be effectively used in large-scale studies for early diagnosis and the monitoring of retinal disease.

Retinal Image

Provides OCT layer thickness and segmented image
